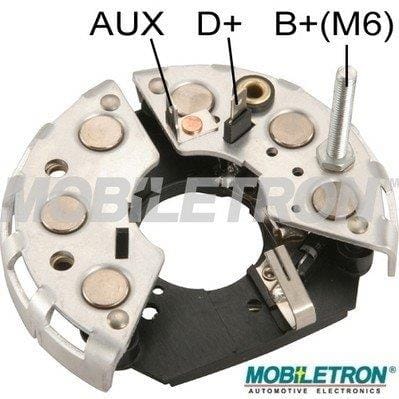

Alternator Rectifier 114mm 6 Diode Alfa BMW VW Opel RCT1007
Vehicle Compatibility & OE Cross Reference
This 114 mm 6 diode alternator rectifier is designed for a wide range of European vehicles using compatible alternators. It matches many Alfa Romeo, BMW, VW/Audi/SEAT/Skoda, Opel, Saab, Citroën, Peugeot, Fiat, Volvo and other applications that use the OE numbers listed below. Always compare the original rectifier diameter, mounting style and OE number before using RCT1007.
Primary OE Numbers by Brand
- Alfa Romeo: 116100506004; 116100506008; 116100506013; 119130506100; 119130506121
- Fiat: 60725868; 60736000; 60754984; 79022471; 79031725; 79078926; 82327406; 82335792; 9927838; 9934237; 9934639; 9936539
- Alfa/Fiat/Lancia (combined list): 116100506004; 11610050600813; 119130506100; 119130506121; 79031725; 82302915; 82302916; 82327406; 82335792; 9818256; 9927838; 9934237
- Audi: 046 903 359A; 056 903 359B; 056 903 371B; 46 903 359; 56 903 359
- BMW: 12-31-1-266-720; 12-31-1-268-409; 12-31-1-268-415; 12-31-1-279-597; 12-31-1-356-060; 12-31-1-358-048; 12-31-1-363-097; 12-31-1-706-465
- BMW (new style numbers): 12311266720; 12311268409; 12311268415; 12311279597; 12311354682; 12311356060; 12311358048; 12311363097; 12311706465
- Citroën: 9405144528
- CITROËN / Peugeot (combined): 574452; 574463; 574467; 574486; 574488; 9405144528
- DAF: 692060; 694461
- Iveco: 79078926
- Lancia: 82302915; 82302916
- Magirus-Deutz: 8128110; 8198792
- Opel: 1205449; 1205550; 1205551; 1205553; 1205555; 1205557; 1205558; 1205559; 1205562; 1205565; 1205569; 90140010
- Peugeot: 5744.52; 5744.63; 5744.67; 5744.86; 5744.88
- Saab: 8550113; 8559825; 8571903; 8591083; 8584903
- SAME: 294391601
- SEAT: NG981025.29; 046 903 359A; 056 903 359B; 056 903 371B; 3980278; 46 903 359; 56 903 359
- Skoda: 046 903 359A; 056 903 359B; 056 903 371B; 46 903 359; 56 903 359
- Talbot: 43278800; 0043278800
- Volvo: 1235288; 1235577; 1259577; 1363914; 243949; 243950; 692060; 694461
- VW: 046 903 359A; 056 903 359B; 056 903 371B; 46 903 359; 56 903 359
- VAG group (combined): NG98102529; 0003980278; 046903359; 046903359A; 046903359B; 049903359H; 056903359; 056903371B
If your original rectifier carries any of these OE or comparison numbers and measures approximately 114 mm in outer diameter with 6 diodes, RCT1007 is a suitable replacement option.
Specifications
- Reference: RCT1007
- Part type: Alternator rectifier
- Outer diameter: 114 mm
- Number of diodes: 6
- Current capacity: from 35 A (minimum)
- Alternator references: 0120400; 0120488; 0120489; 0303407M (and equivalents)
- System voltage: 12V
- Operating voltage: approx. 14V
- Charging voltage: approx. 14.7V
- Primary usage: European passenger, light commercial and industrial engines using compatible alternators
- Function: Converts alternator AC output to DC to charge the battery and power the vehicle electrical system
Features
- 114 mm 6 diode rectifier bridge for a wide range of European alternators
- From 35 A current rating for reliable charging in everyday use
- Extensive OE cross reference coverage across Alfa, BMW, VW/Audi, Opel, Saab, Citroën, Peugeot, Fiat, Volvo and more
- Direct replacement design to simplify alternator overhaul and bench repairs
- Helps restore correct charging performance where the original rectifier has failed or shorted
Why Buy From Us
- Local South African stock on popular rectifiers like RCT1007 for quick turnaround
- Standard 12 month warranty under normal operating and installation conditions
- Fitment assistance using OE numbers, alternator part numbers and clear photos
- Secure online ordering with reliable nationwide courier delivery
- Trusted by auto electricians and workshops for quality charging system components
Installation & Maintenance Tips
- Disconnect the battery before removing the alternator or working on the rectifier.
- Confirm the alternator model, OE number and rectifier diameter (114 mm) before fitting RCT1007.
- Inspect stator windings, slip rings and brushes for heat damage or shorts when replacing a failed rectifier.
- Ensure all main power and earth connections are clean and tight to avoid voltage drop and repeat failures.
- After reassembly, bench test the alternator or check charging voltage on the vehicle to confirm correct operation.
- If you are unsure about alternator repairs, have the rectifier fitted and tested by a qualified auto electrician.
