Concentric Slave Cylinder for Ford Focus, Mazda 2 & Volvo S40 – 510 0058 10

This concentric slave cylinder (510 0058 10) fits a wide range of Ford, Mazda and Volvo models including the Ford Focus I, II and III, Fiesta V and VI, C-Max, Grand C-Max, Mondeo IV, B-Max, EcoSport, Fusion, KA, KA+, Transit Courier, Tourneo Courier, Street KA, Mazda 2 and Volvo C30, S40 II and V50. It replaces OEM reference numbers including AV61-7A564-AC, BM55-7A564-AB and 30759883. Refer to the full vehicle fitment list below to confirm compatibility with your vehicle.

SKU: 510 0058 10
Component Type: Concentric Slave Cylinder
Primary Vehicle: Ford Focus I (DAW, DBW) 1998 – 2004

Key Benefits

Fits a wide range of Ford petrol and diesel applications from 1998 to 2023, plus Mazda 2 and Volvo C30/S40/V50
Replaces numerous OEM reference numbers across Ford, Mazda and Volvo including AV61-7A564-AC and 30759883

OEM Reference Numbers

This concentric slave cylinder is a replacement for the following OEM part numbers:

AV61-7A564-AC (Ford)
BM55-7A564-AB (Ford)
1212061 (Ford)
1434878 (Ford)
1457641 (Ford)
1474323 (Ford)
1480708 (Ford)
1495872 (Ford)
1514143 (Ford)
1547820 (Ford)
BE8Z 7A56 4A (Ford USA)
3M51-7A564-AG (Ford Changan)
3M51-7A564-AH (Ford Changan)
7G91-7A564-AB (Ford Changan)
7G91-7A564-AC (Ford Changan)
DK49-17-ZX1A (Mazda)
DK49-17-ZX1B (Mazda)
30759883 (Volvo)
31256055 (Volvo)
31256199 (Volvo)
31259635 (Volvo)

Vehicle Fitment

Includes 40 model variants across Ford, Mazda and Volvo. Expand the full list below.

View All Vehicle Fitment (40 applications)

Ford

Model	Chassis	Engines	Power	Years
B-Max	JK	1.0 EcoBoost, 1.4, 1.5 TDCi, 1.6 TDCi, 1.4 LPG	55 – 103 kW	2012–
B-Max Van	JK	1.0 EcoBoost, 1.4, 1.5 TDCi, 1.6 TDCi, 1.4 LPG	55 – 92 kW	2012–
C-Max	DM2	1.6, 1.8, 1.8 Flexifuel	74 – 92 kW	2007 – 2010
C-Max II	DXA/CB7, DXA/CEU	1.6 Ti, 1.6 Flexifuel, 1.6 LPG, 1.6 CNG	63 – 92 kW	2010 – 2019
EcoSport	–	1.0 EcoBoost, 1.5 Ti, 1.5 TDCi, 1.5 EcoBlue TDCi	66 – 103 kW	2013–
Fiesta V	JH_, JD_	1.25 16V, 1.3, 1.4 16V, 1.6 16V, 1.4 TDCi, 1.6 TDCi	44 – 74 kW	2001 – 2008
Fiesta V Van	–	1.3, 1.4 TDCi, 1.6 TDCi	50 – 66 kW	2003 – 2010
Fiesta VI	CB1, CCN	1.0, 1.0 EcoBoost, 1.25, 1.4, 1.6 Ti, 1.4 TDCi, 1.5 TDCi, 1.6 TDCi, 1.4 LPG	44 – 103 kW	2008 – 2017
Fiesta VI Van	–	1.0, 1.0 EcoBoost, 1.25, 1.4, 1.4 TDCi, 1.5 TDCi, 1.6 TDCi	48 – 103 kW	2009 – 2017
Fiesta Saloon	–	1.6	62 kW	2015 – 2017
Focus I	DAW, DBW	1.4 16V, 1.6 16V, 1.8 16V, 2.0 16V, 1.8 BiFuel	55 – 96 kW	1998 – 2004
Focus I Saloon	DFW	1.4 16V, 1.6 16V, 1.8 16V, 2.0 16V	55 – 96 kW	1999 – 2004
Focus I Estate Van	DNW	1.4, 1.6, 1.8	55 – 85 kW	1999 – 2005
Focus C-Max	DM2	1.6, 1.6 Ti, 1.8, 1.8 Flexifuel	74 – 92 kW	2003 – 2007
Focus II	DA_, HCP, DP	1.4, 1.6, 1.6 Ti, 1.8, 1.8 Flexifuel, 1.6 LPG	59 – 92 kW	2004 – 2012
Focus II Turnier	DA_, FFS, DS	1.4, 1.6, 1.6 Ti, 1.8, 1.8 Flexifuel, 1.6 LPG	59 – 92 kW	2004 – 2012
Focus II Saloon	DB_, FCH, DH	1.4, 1.6, 1.6 Ti, 1.8, 1.8 Flexifuel	59 – 92 kW	2005 – 2012
Focus II Convertible	–	1.6	74 kW	2006 – 2010
Focus II Estate Van	–	1.4, 1.6, 1.6 Ti-VCT	59 – 85 kW	2005 – 2011
Focus III	–	1.0 EcoBoost, 1.6 Ti, 1.6 Flexifuel, 1.6 LPG	63 – 103 kW	2010 – 2020
Focus III Saloon	–	1.0 EcoBoost, 1.6 Ti, 1.6 Flexifuel	63 – 103 kW	2010 – 2020
Focus III Turnier	–	1.0 EcoBoost, 1.6 Ti, 1.6 Flexifuel, 1.6 LPG	63 – 103 kW	2010 – 2020
Focus III Estate Van	–	1.0 EcoBoost	74 – 92 kW	2012 – 2020
Focus III Hatchback Van	–	1.0 EcoBoost, 1.6 Ti	74 – 92 kW	2011 – 2020
Fusion	JU_	1.25, 1.4, 1.6, 1.4 TDCi, 1.6 TDCi, 1.4 LPG	50 – 74 kW	2002 – 2012
Grand C-Max	DXA/CB7, DXA/CEU	1.6 Ti	63 – 92 kW	2010 – 2019
KA	RB_	1.6 i	70 kW	2001 – 2008
KA+ III	UK, FK	1.2, 1.2 Ti-VCT, 1.5 TDCi	51 – 70 kW	2016–
KA+ III Saloon	TK, FK	1.2 Ti-VCT	63 kW	2016–
Mondeo IV	BA7	1.6 Ti	81 – 92 kW	2007 – 2015
Mondeo IV Saloon	BA7	1.6 Ti	81 – 92 kW	2007 – 2015
Mondeo IV Turnier	BA7	1.6 Ti	81 – 92 kW	2007 – 2015
Street KA	RL2	1.6	70 kW	2003 – 2005
Tourneo Courier B460	–	1.0 EcoBoost, 1.5 TDCi, 1.6 TDCi	55 – 74 kW	2014 – 2023
Transit Courier B460 Box Body/MPV	–	1.0 EcoBoost, 1.5 TDCi, 1.6 TDCi	55 – 74 kW	2014 – 2023
Transit Courier B460 MPV	–	1.0 EcoBoost, 1.5 TDCi, 1.6 TDCi	55 – 74 kW	2014 – 2023

Mazda

Model	Chassis	Engines	Power	Years
2	DY	1.2, 1.4, 1.6, 1.4 CD	50 – 74 kW	2003 – 2007
2	DE_, DH_	1.4 MZR-CD, 1.6 MZ-CD	50 – 70 kW	2007 – 2015

Volvo

Model	Chassis	Engine	Engine Code	Power	Years
C30	533	1.6	B 4164 S3	74 kW	2006 – 2012
S40 II	544	1.6	B 4164 S3	74 kW	2005 – 2012
V50	545	1.6	B 4164 S3	74 kW	2005 – 2012

Fitment Notes

This concentric slave cylinder covers a wide range of Ford petrol and diesel engines from 1.0 to 2.0 litres, Mazda 2 petrol and diesel engines, and the Volvo C30/S40/V50 1.6 petrol. Multiple engine code variants exist per model. Confirm your exact engine code and model year against the fitment table above before ordering.

Common Questions

What vehicles does this concentric slave cylinder fit?

This concentric slave cylinder (510 0058 10) fits a wide range of Ford models including Focus I, II and III, Fiesta V and VI, C-Max, Grand C-Max, Mondeo IV, B-Max, EcoSport, Fusion, KA, KA+, Transit Courier, Tourneo Courier and Street KA. It also fits the Mazda 2 (DY and DE_ generations) and Volvo C30, S40 II and V50. Refer to the full fitment table above for specific engine variants and year ranges.

What OEM reference numbers does this part replace?

This concentric slave cylinder replaces numerous OEM reference numbers including AV61-7A564-AC and BM55-7A564-AB (Ford), DK49-17-ZX1A (Mazda), and 30759883 (Volvo). See the full OEM reference list above for all cross-referenced numbers.

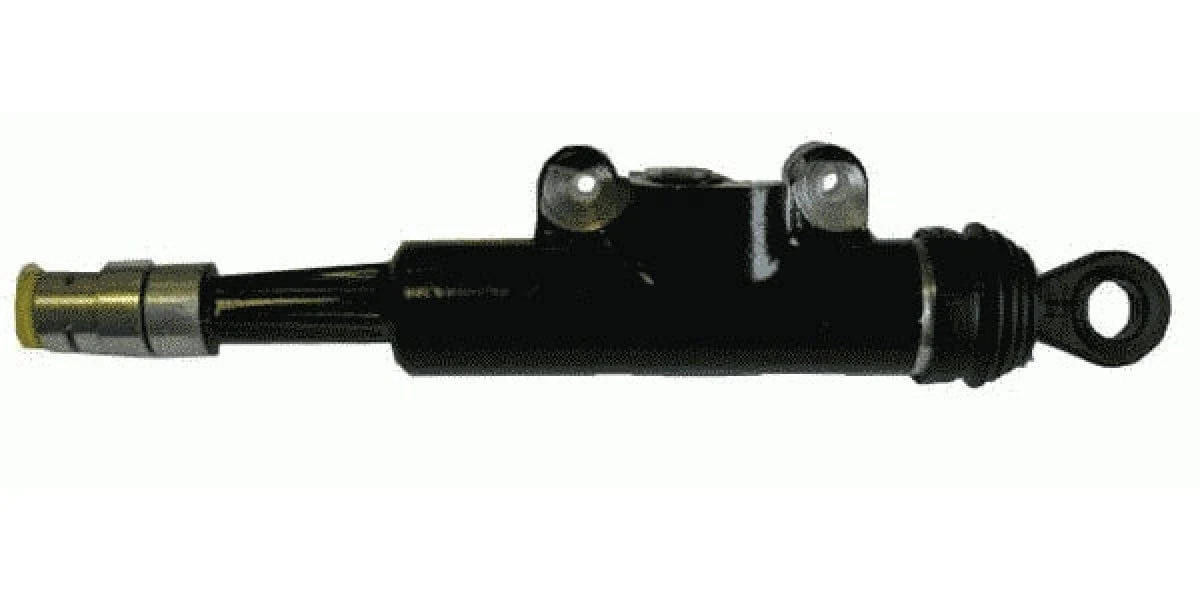

Clutch Master Cylinder SACHS 6284 600 104
