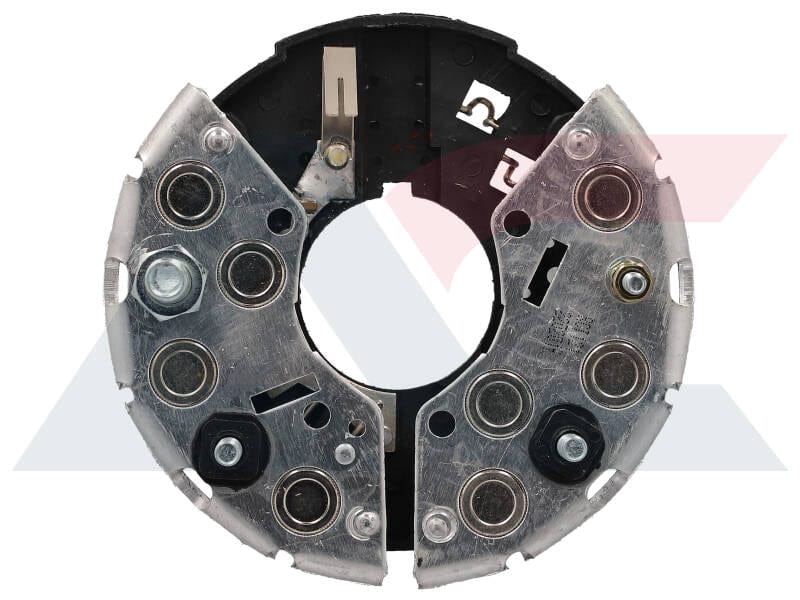

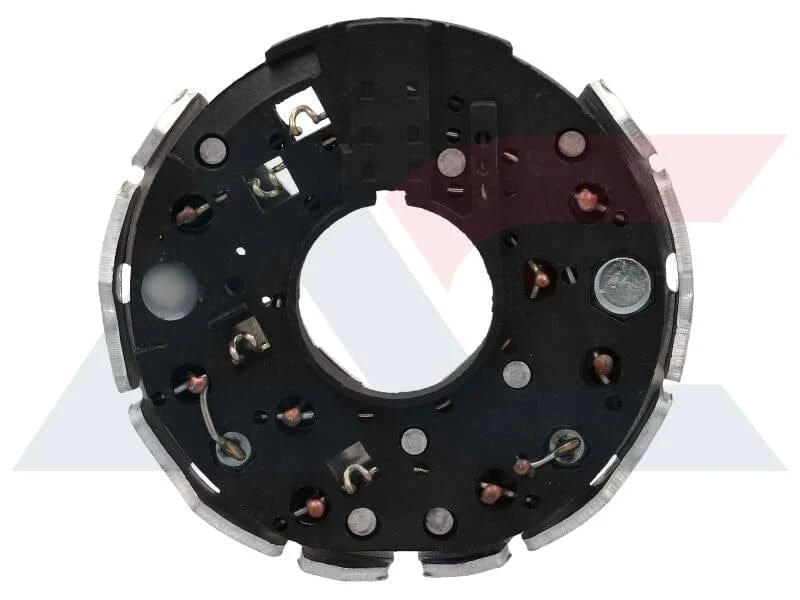

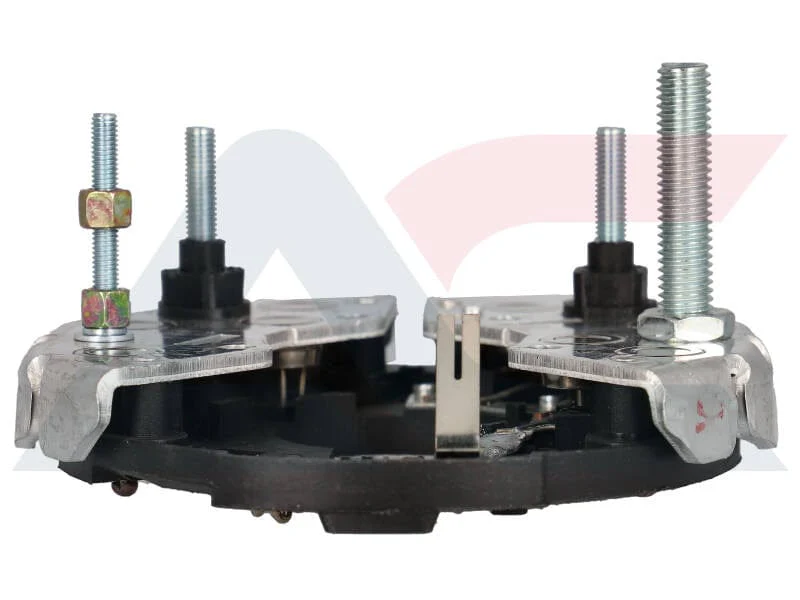

Alternator Rectifier 112mm OD 35A 8 Diode Mahindra Bolero Scorpio Tata Indica RCT1217
Vehicle Compatibility
- Mahindra Bolero
- Mahindra Scorpio
- Tata Indica
Confirm by alternator label and plug style before ordering.
Specifications
- Voltage: 12 V
- Current Strength: 35 A
- Number of Diodes: 8
- Outer Diameter: 112 mm
- Inner Diameter: 37 mm
- Height: 59.4 mm
Features
- Alternator rectifier for applications listed
- 112 mm outer diameter rectifier assembly
- 35A rated current strength (as supplied)
- 8 diode configuration (as supplied)
- 37 mm inner diameter and 59.4 mm height for correct alternator matching
Why Buy From Us
- Workshop-friendly support for alternator identification and matching
- Fast nationwide courier delivery across South Africa
- Quality-checked automotive electrical components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Confirm by alternator label and plug style before ordering.
- Disconnect the battery and isolate the charging circuit before alternator strip-down.
- Measure rectifier OD/ID and confirm diode count against the unit being repaired.
- Inspect stator leads and insulators for heat damage before fitting the rectifier.
- After installation, load-test the charging system and verify stable output under electrical load.
