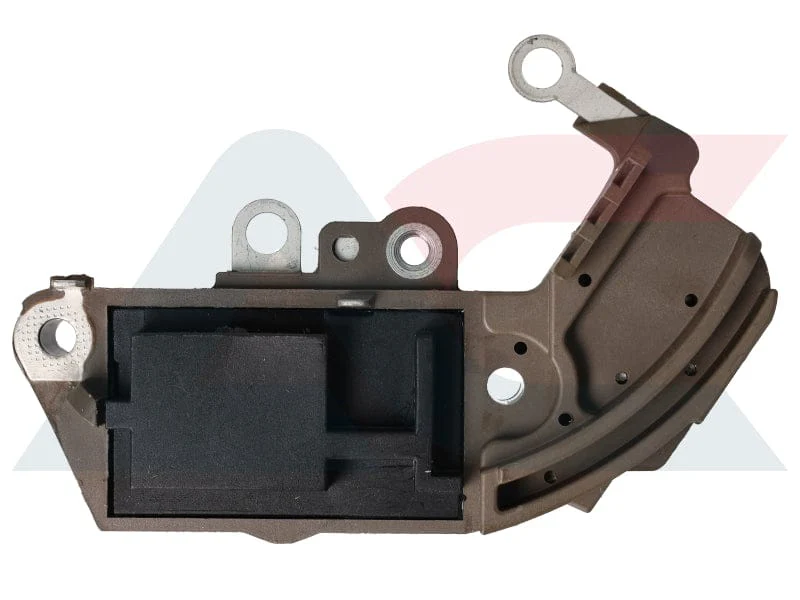

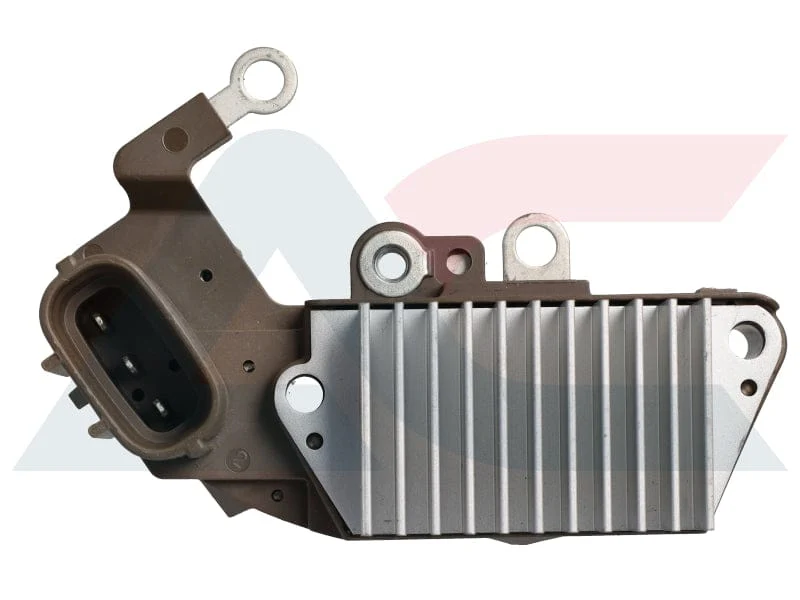

Alternator Voltage Regulator 12V Denso Toyota Camry Hilux Land Cruiser Paseo Tercel Lexus 3 Pin S IG L 63.5mm REG6098
Alternator Voltage Regulator 12V Denso Toyota Camry Hilux Land Cruiser Paseo Tercel Lexus 3 Pin S IG L 63.5mm REG6098
Vehicle Compatibility
Alternator voltage regulator for select Nippon Denso alternator applications used on Toyota and Lexus vehicles where the alternator uses a matching 3 pin connector in the S IG L layout (plug type ID Sense IG L) and the same mounting specification. Listed for Toyota 3.0L applications and also used across Toyota Camry 2.2L, Toyota Hilux 2.2L, Toyota Land Cruiser 4.5L, Toyota Paseo 1.5L and Toyota Tercel where the alternator/regulator reference matches. Regulator is specified with active lamp function, 9.8 sec LRC behaviour and short circuit protection. Confirm by alternator label, plug style and OE reference before ordering.
- Toyota: Toyota 3.0L
- Toyota: Camry 2.2L
- Toyota: Hilux 2.2L
- Toyota: Land Cruiser 4.5L
- Toyota: Paseo 1.5L
- Toyota: Tercel
- Lexus: Applications using the same Denso regulator specification
Specifications
- Reference: REG6098
- Part Type: Alternator Voltage Regulator
- Manufacturer: Nippon Denso
- System Voltage: 12V
- Operating Voltage: 14V
- Regulated Voltage (Set Point): 14.6V (VS=14.6V)
- Charging Voltage: 14.4V
- Circuit: A-Circuit
- Type: IR/IF (Internal Regulator / Internal Fan)

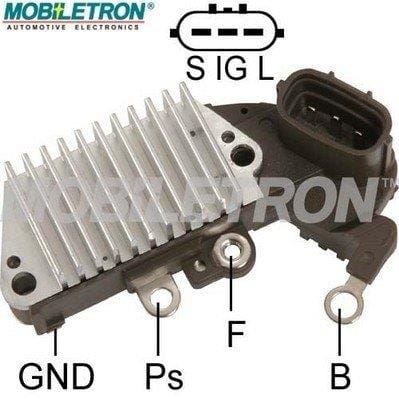

- Connector / Pins: 3 Pin (S-IG-L)
- Plug Type: IDSense-IG-L
- Specification: 9.8 Sec. LRC; Active Lamp
- Short Circuit Protection: Yes
- Mounting Points Diameter: 63.5mm
- Special Note: With Choke
OE Numbers
- Toyota: 27700-11070
- Toyota: 27700-50020
- Toyota: 27700-50030
- Toyota: 27700-54060
- Toyota: 27700-66040
- Toyota: 27700-74040
- Toyota: 2770011070
- Toyota: 2770011080
- Toyota: 2770066040
- Toyota: 2770075020
Features
- Nippon Denso regulator design for matched Toyota and Lexus alternator configurations using a 3 pin S IG L interface
- 63.5mm mounting specification to match compatible regulator housings and fastener spacing
- 9.8 second LRC behaviour with active lamp function for correct warning lamp and charge control response
- 14.4V charging control with VS=14.6V specification for stable 12V system charging
- Short circuit protection to support reliability and reduce repeat failures on compatible alternator builds
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and mounting points
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the connector is a 3 pin S IG L plug and the mounting point diameter is 63.5mm before fitting
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- Ensure all charging circuit connections and earth points are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm warning lamp behaviour is correct
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
