Alternator Voltage Regulator 12V Honda Isuzu IDD-IG-L 2.5 Sec. LRC Active Lamp 14.4V REG6014
Alternator Voltage Regulator 12V Honda Isuzu IDD-IG-L 2.5 Sec. LRC Active Lamp 14.4V REG6014
Vehicle Compatibility
- Honda (application as provided)
- Isuzu (application as provided)
Confirm by alternator label and plug style before ordering.
Specifications
- Voltage: 12 V

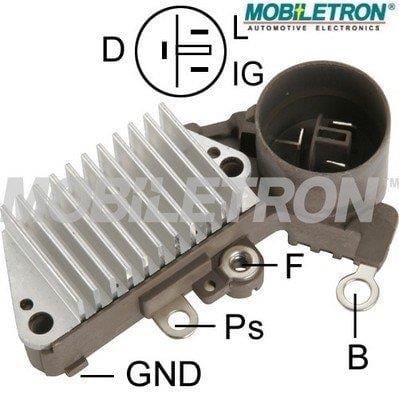

- Plug Type: IDD-IG-L
- Operating Voltage: 14 V
- Specification: 2.5 Sec. LRC
- Lamp Specification: Active Lamp
- Mounting Points Diameter: 63.5 mm
- Charging Voltage: 14.4 V
- Short Circuit Protection: Yes
Confirm by alternator label and plug style before ordering.
OE Numbers
- General Motors: 96052000
- Honda: 31500PEO003
- Suzuki: 3250082610
Features
- Accurate 12 V alternator regulation for stable charging performance
- IDD-IG-L plug configuration to match specified alternator harness
- 2.5 sec LRC with active lamp control as provided
- Short circuit protection for improved electrical reliability
Why Buy From Us
- South African seller with nationwide courier delivery
- Workshop-friendly parts suitable for alternator repairs and rebuilds
- Support available to confirm application before checkout
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or regulator replacement.
- Confirm the alternator label details and IDD-IG-L plug style match before fitment.
- Check brushes and slip rings for wear and replace if required during rebuild.
- After installation, verify charging voltage and warning lamp operation under load.
Confirm by alternator label and plug style before ordering.
$52.55
Alternator Voltage Regulator 12V Honda Isuzu IDD-IG-L 2.5 Sec. LRC Active Lamp 14.4V REG6014—
$52.55
Description
Vehicle Compatibility
- Honda (application as provided)
- Isuzu (application as provided)
Confirm by alternator label and plug style before ordering.
Specifications
- Voltage: 12 V
- Plug Type: IDD-IG-L
- Operating Voltage: 14 V
- Specification: 2.5 Sec. LRC
- Lamp Specification: Active Lamp
- Mounting Points Diameter: 63.5 mm
- Charging Voltage: 14.4 V
- Short Circuit Protection: Yes
Confirm by alternator label and plug style before ordering.
OE Numbers
- General Motors: 96052000
- Honda: 31500PEO003
- Suzuki: 3250082610
Features
- Accurate 12 V alternator regulation for stable charging performance
- IDD-IG-L plug configuration to match specified alternator harness
- 2.5 sec LRC with active lamp control as provided
- Short circuit protection for improved electrical reliability
Why Buy From Us
- South African seller with nationwide courier delivery
- Workshop-friendly parts suitable for alternator repairs and rebuilds
- Support available to confirm application before checkout
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or regulator replacement.
- Confirm the alternator label details and IDD-IG-L plug style match before fitment.
- Check brushes and slip rings for wear and replace if required during rebuild.
- After installation, verify charging voltage and warning lamp operation under load.
Confirm by alternator label and plug style before ordering.
