Alternator Voltage Regulator 12V Peugeot 307 308 Mitsubishi 2 Pin Small Pins L DFM L FR Active Lamp REG5057
Alternator Voltage Regulator 12V Peugeot 307 308 Mitsubishi 2 Pin Small Pins L DFM L FR Active Lamp REG5057
Vehicle Compatibility
Alternator voltage regulator for select Mitsubishi alternator applications on Peugeot vehicles where the alternator uses the 2 pin small pin regulator layout and the same charging characteristics. Listed for Peugeot 307 and Peugeot 308 where the alternator/regulator reference matches. The regulator is commonly listed as a 2 pin L-DFM or 2 pin L-FR configuration (small pins) with plug type IDL-CPU. Specified with active lamp function, 3.5 sec LRC behaviour and short circuit protection. Confirm by alternator label and plug/pin style before ordering.
- Peugeot: 307
- Peugeot: 308
Specifications
- Reference: REG5057
- Part Type: Alternator Voltage Regulator
- Manufacturer: Mitsubishi
- System Voltage: 12V
- Operating Voltage: 14V
- Regulated Voltage (Set Point): 14.5V (VS=14.5V)
- Charging Voltage: 14.5V
- Circuit: A-Circuit
- Type: IR/IF (Internal Regulator / Internal Fan)

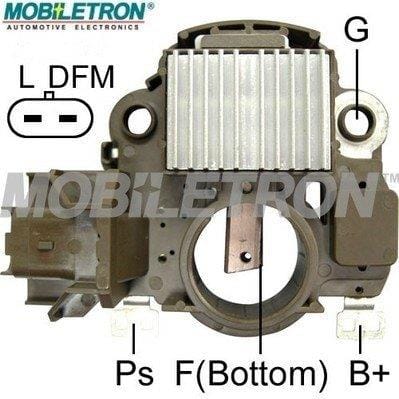

- Connector / Pins: 2 Pin (L-DFM) / 2 Pin (L-FR) Small Pins
- Plug Type: IDL-CPU
- Specification: 3.5 Sec. LRC; Active Lamp
- Short Circuit Protection: Yes
OE Numbers
- Citroën / Peugeot: 9638544180
- Mitsubishi: A866X49872
- Other Reference: 498
- Mitsubishi: A005TA6291A
- Mitsubishi: A005TA6291B
- Mitsubishi: A005TA6291C
- Mitsubishi: A005TA6291D
- Mitsubishi: A005TA6291F
- Mitsubishi: A005TA6291G
- Mitsubishi: A005TA6291H
- Mitsubishi: A005TA6291ZE
- Mitsubishi: A1TA3391
- Mitsubishi: A5TA6291A
- Mitsubishi: A5TA6291B
- Mitsubishi: A5TA6291D
Features
- Mitsubishi regulator design for matched Peugeot 307 and 308 alternator configurations using the 2 pin small pin layout
- A-circuit IR/IF internal regulator internal fan configuration for specified alternator housings
- 14.5V set point (VS=14.5V) with 14.5V charging control for stable 12V system charging
- 3.5 second LRC behaviour with active lamp function for correct warning lamp and load response behaviour
- Short circuit protection to support reliability and reduce repeat failures on compatible alternator builds
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and pin style
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the alternator uses the 2 pin small pin layout (L-DFM or L-FR) and the plug type matches IDL-CPU before fitting
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- Ensure charging circuit connections and earth points are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm warning lamp behaviour is correct
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
