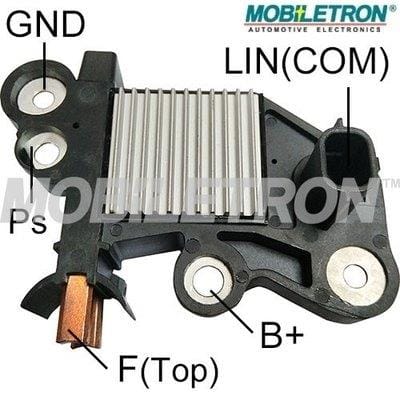

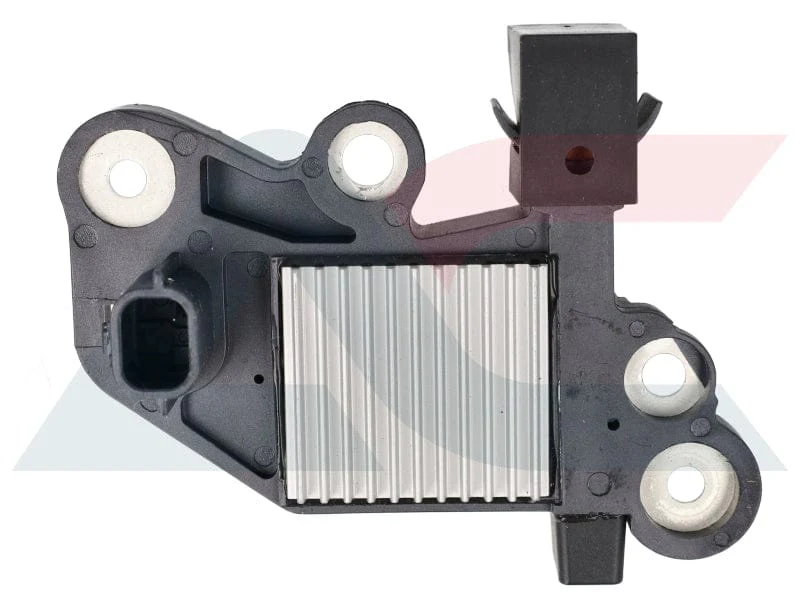

Alternator Voltage Regulator 12V Renault Clio 1.2L 1 Pin IDCPU LIN 2.0 14.3V REG1217
Vehicle Compatibility
- Renault Clio 1.2L
Confirm by alternator label and plug style before ordering.
Specifications
- Voltage: 12 V
- Operating Voltage: 14 V
- Charging Voltage: 14.3 V
- Specification: LIN (COM)
- LIN: 2.0
- Voltage Range: 10.7 V to 16.0 V
- Plug Type: ID CPU
- Number of Pins: 1 Pin
- Circuit Polarity: B-Circuit
- COM ID Code: 8
- Testing Note: Requires COM02 test adaptor for testing
- Control Functions: Standby Mode; Leakage Current Control; Self Mode; Default Mode; Variable V Setting; Field Out Duty Monitor; Temperature and Field Current
OE Numbers
- IKA: 142211
Features
- 12V alternator voltage regulator for Renault Clio 1.2L applications
- 1 pin ID CPU plug connection with LIN (COM) LIN 2.0 specification
- B-circuit polarity as supplied with COM ID code 8
- Regulated charging at 14.3 V within 10.7 V to 16.0 V operating range
- Supports standby, leakage current control, variable voltage setting, and field duty monitoring functions (as provided)
Why Buy From Us
- Workshop-friendly support for alternator identification and matching
- Fast nationwide courier delivery across South Africa
- Quality-checked automotive electrical components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Confirm by alternator label and plug style before ordering.
- Disconnect the battery before alternator removal and regulator replacement.
- Confirm the 1 pin ID CPU plug and LIN 2.0 communication match the alternator before fitment.
- If bench testing, use the correct COM02 test adaptor as specified.
- After installation, verify charging voltage stability and scan for charging/LIN communication faults if applicable.
$26.45
Original: $88.18
-70%Alternator Voltage Regulator 12V Renault Clio 1.2L 1 Pin IDCPU LIN 2.0 14.3V REG1217—
$88.18
$26.45
