Alternator Voltage Regulator 12V Toyota Hilux 3.0 Denso 3 Pin ID Sense IG L 63.5mm OE 27700 65010 REG6062
Alternator Voltage Regulator 12V Toyota Hilux 3.0 Denso 3 Pin ID Sense IG L 63.5mm OE 27700 65010 REG6062
Vehicle Compatibility
Alternator voltage regulator for select Nippon Denso alternator applications on Toyota vehicles where the alternator uses a matching 3 pin connector and plug type ID Sense-IG-L with the same mounting specification. Listed for Toyota Hilux 6 Pick-up (N1) and Toyota Hilux 6 Chassis (N1) applications, and also referenced for Condor MPV (F7, F8) where the alternator/regulator reference matches. Designed around a 63.5mm mounting point diameter and specified with an inactive lamp function and 14.0V charging control. Confirm by alternator label, plug style and Toyota OE reference before ordering.
- Toyota: Condor MPV (F7, F8) 12.96 - 12.05
- Toyota: Hilux 6 Pick-up (N1) 08.94 - 03.06
- Toyota: Hilux 6 Chassis (N1) 08.97 - 02.06
- Toyota: 3.0 alternator applications where OE 2770065010 and regulator specification match
Specifications
- Reference: REG6062
- Part Type: Alternator Voltage Regulator
- Manufacturer: Nippon Denso
- System Voltage: 12V
- Operating Voltage: 14V
- Charging Voltage: 14.0V
- Type: IR/IF (Internal Regulator / Internal Fan)

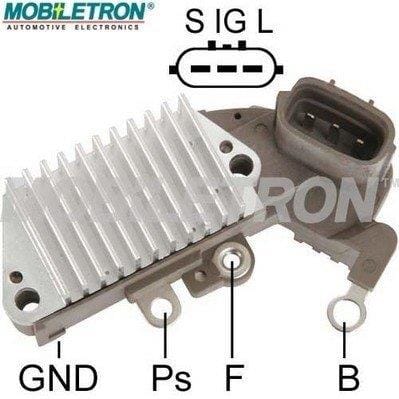

- Connector / Pins: 3 Pin
- Plug Type: IDSense-IG-L
- Specification: Inactive Lamp
- Mounting Points Diameter: 63.5mm
OE Numbers
- Toyota: 2770065010
Cross References
- Mobiletron: VR-H2005-35
- Other Suppliers: REG6062
Features
- Denso regulator specification for matched Toyota Hilux and Condor alternator configurations using a 3 pin IDSense-IG-L interface
- 63.5mm mounting specification to match compatible regulator housings and fastener spacing
- Inactive lamp specification for correct warning lamp behaviour on compatible charging systems
- 14.0V charging control for stable battery charging performance on compatible 12V systems
- Best practice is to confirm Toyota OE 2770065010 and the plug style before installation to avoid incorrect fitment
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and mounting points
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the connector is 3 pin and the plug type matches IDSense-IG-L before fitting
- Confirm the mounting point diameter is 63.5mm if you are matching by housing dimensions
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- After installation, verify charging voltage under load and confirm charging performance is stable
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
Original: $21.97
-70%$21.97
$6.59
Description
Vehicle Compatibility
Alternator voltage regulator for select Nippon Denso alternator applications on Toyota vehicles where the alternator uses a matching 3 pin connector and plug type ID Sense-IG-L with the same mounting specification. Listed for Toyota Hilux 6 Pick-up (N1) and Toyota Hilux 6 Chassis (N1) applications, and also referenced for Condor MPV (F7, F8) where the alternator/regulator reference matches. Designed around a 63.5mm mounting point diameter and specified with an inactive lamp function and 14.0V charging control. Confirm by alternator label, plug style and Toyota OE reference before ordering.
- Toyota: Condor MPV (F7, F8) 12.96 - 12.05
- Toyota: Hilux 6 Pick-up (N1) 08.94 - 03.06
- Toyota: Hilux 6 Chassis (N1) 08.97 - 02.06
- Toyota: 3.0 alternator applications where OE 2770065010 and regulator specification match
Specifications
- Reference: REG6062
- Part Type: Alternator Voltage Regulator
- Manufacturer: Nippon Denso
- System Voltage: 12V
- Operating Voltage: 14V
- Charging Voltage: 14.0V
- Type: IR/IF (Internal Regulator / Internal Fan)
- Connector / Pins: 3 Pin
- Plug Type: IDSense-IG-L
- Specification: Inactive Lamp
- Mounting Points Diameter: 63.5mm
OE Numbers
- Toyota: 2770065010
Cross References
- Mobiletron: VR-H2005-35
- Other Suppliers: REG6062
Features
- Denso regulator specification for matched Toyota Hilux and Condor alternator configurations using a 3 pin IDSense-IG-L interface
- 63.5mm mounting specification to match compatible regulator housings and fastener spacing
- Inactive lamp specification for correct warning lamp behaviour on compatible charging systems
- 14.0V charging control for stable battery charging performance on compatible 12V systems
- Best practice is to confirm Toyota OE 2770065010 and the plug style before installation to avoid incorrect fitment
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and mounting points
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the connector is 3 pin and the plug type matches IDSense-IG-L before fitting
- Confirm the mounting point diameter is 63.5mm if you are matching by housing dimensions
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- After installation, verify charging voltage under load and confirm charging performance is stable
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
