Vehicle Compatibility
Alternator voltage regulator for select Valeo alternator applications on BMW and Land Rover vehicles where the alternator uses a matching 2 pin L DFM connection (plug type IDF-L) and the same control strategy. Specified as a B-circuit regulator with IR/IF (internal regulator / internal fan) configuration, active lamp function, and short circuit protection. Listed for BMW diesel applications and Land Rover Freelander TD4 where the alternator reference matches ALT0047A. Confirm by alternator label and plug style before ordering.
- BMW: 318D; 320D; 330D
- BMW: X3 2.0L; X3 3.0L
- BMW: X5 3.0L
- Land Rover: Freelander 2.0L TD4 4x4
Specifications
- Reference: REG0059
- Part Type: Alternator Voltage Regulator
- Manufacturer: Valeo
- System Voltage: 12V
- Operating Voltage: 14V
- Regulated Voltage (Set Point): 14.5V (VS=14.5V)
- Voltage Range: 14.40V to 14.80V
- Charging Voltage: 14.6V
- Circuit: B-Circuit
- Type: IR/IF (Internal Regulator / Internal Fan)

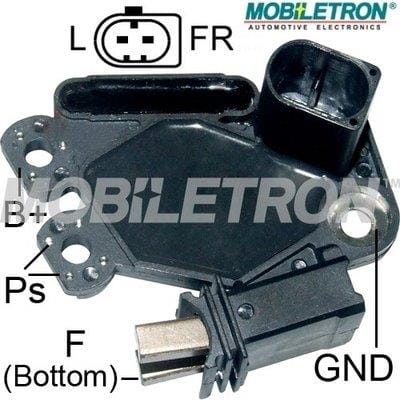

- Connector / Pins: 2 Pin (L-DFM)
- Plug Type: IDF-L
- Specification: 4.5 Sec. LRC; Active Lamp
- Short Circuit Protection: Yes
- For Alternator Reference: ALT0047A
OE Numbers
- BMW: 7-797-662-01
Features
- Valeo regulator design for matched BMW and Land Rover alternator configurations using a 2 pin L-DFM interface
- B-circuit control strategy with IR/IF internal regulator internal fan configuration for specified alternator housings
- 14.5V set point with a 14.40V to 14.80V regulation band to stabilise charging output
- Active lamp function and 4.5 second LRC behaviour for correct warning lamp and charge control behaviour
- Short circuit protection to support reliability on compatible alternator builds
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and regulator
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the plug is 2 pin L-DFM (IDF-L) and the alternator reference matches ALT0047A before fitting
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- Ensure all charging circuit connections and earth points are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm the warning lamp behaviour is correct
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
