Alternator Voltage Regulator 12V Valeo BMW 316Ci 316i 316i Compact 318Ci 318i 3 Pin IG L Dummy REG0022
Alternator Voltage Regulator 12V Valeo BMW 316Ci 316i 316i Compact 318Ci 318i 3 Pin IG L Dummy REG0022
Vehicle Compatibility
Alternator voltage regulator for select Valeo alternator applications on BMW vehicles where the alternator uses a matching 3 pin connection in the IG L Dummy layout (also listed as 3P 15-61E-Dummy) and the same control strategy. Listed for BMW 316Ci, BMW 316i, BMW 316i Compact, BMW 318Ci and BMW 318i where the alternator/regulator reference matches. Specified as a B-circuit regulator with IR/IF (internal regulator / internal fan) configuration, active lamp function and short circuit protection. Confirm by alternator label and plug style before ordering.
- BMW: 316Ci
- BMW: 316i
- BMW: 316i Compact
- BMW: 318Ci
- BMW: 318i
Specifications
- Reference: REG0022
- Part Type: Alternator Voltage Regulator
- Manufacturer: Valeo
- System Voltage: 12V
- Operating Voltage: 14V
- Regulated Voltage (Set Point): 14.6V (VS=14.6V)
- Charging Voltage: 14.5V
- Circuit: B-Circuit
- Type: IR/IF (Internal Regulator / Internal Fan)

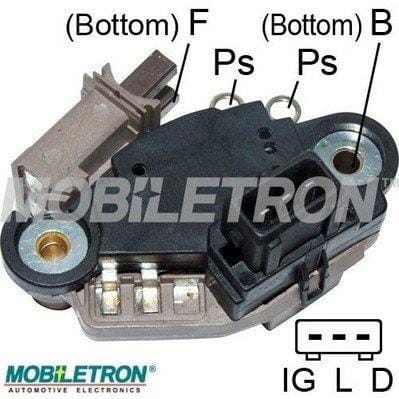

- Connector / Pins: 3 Pin (IG-L-Dummy)
- Alternate Pin Listing: 3P 15-61E-Dummy
- Plug Type: IDD-IG-L
- Specification: 8.5 Sec. LRC; Active Lamp
- Short Circuit Protection: Yes
Cross References
- Mobiletron: VR-PR3617H
- Other Suppliers: REG0022
Features
- Valeo regulator design for matched BMW 316 and 318 alternator configurations using a 3 pin IG-L-Dummy interface
- B-circuit control strategy with IR/IF internal regulator internal fan configuration for specified alternator housings
- 14.6V set point (VS=14.6V) with 14.5V charging control for stable 12V system charging
- 8.5 second LRC behaviour with active lamp function for correct warning lamp and load response behaviour
- Short circuit protection to support reliability and reduce repeat failures on compatible alternator builds
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and regulator
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the connector is 3 pin IG-L-Dummy (or 3P 15-61E-Dummy) and the plug type matches IDD-IG-L before fitting
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- Ensure charging circuit connections and earth points are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm warning lamp behaviour is correct
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
