Cylinder Head Gasket for BMW 323i & 325i N52 E90 - 61-35535-00
Vehicle Fitment & Part Details

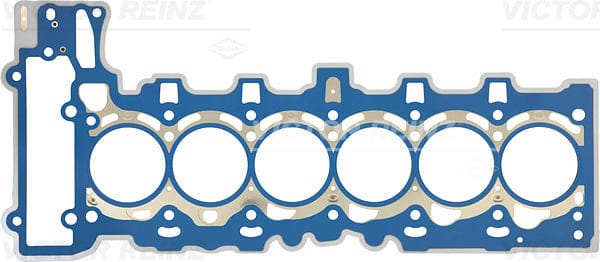

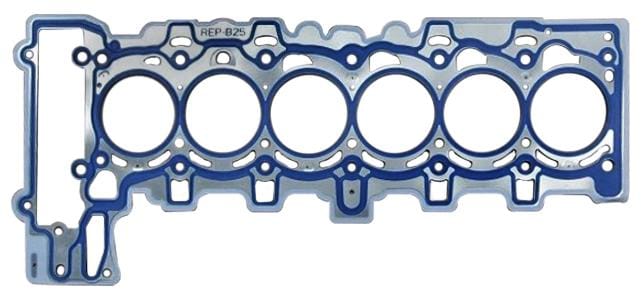

This cylinder head gasket for the BMW 323i (E90) is listed under OE reference 11 12 7 555 310. This is a multilayer steel (MLS) design with an 83 mm bore diameter and 1,2 mm thickness. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- 61-35535-00
- Component
- Cylinder Head Gasket
- OEM References
-
- BMW: 11 12 7 555 310, 11 12 7 555 755
- Primary Fitment
- BMW 323i E90 N52B25 (2005–2007)
- Specs
- Multilayer Steel (MLS), 1,2 mm thickness, 83 mm diameter, only in connection with 14-32315-01
Key Benefits
- Cross-references BMW OE numbers 11 12 7 555 310 and 11 12 7 555 755 for verification before ordering.
- Multilayer steel (MLS) construction with 83 mm bore diameter and 1,2 mm thickness.
OEM Reference Numbers
- BMW: 11 12 7 555 310, 11 12 7 555 755
Product Specifications
| Specification | Details |
|---|---|
| Gasket Design | Multilayer Steel (MLS) |
| Thickness | 1,2 mm |
| Diameter | 83 mm |
| Only in Connection With | 14-32315-01 |
Vehicle Fitment
| Model | Chassis | Engine | Years |
|---|---|---|---|
| 323i | E90 | N52B25 | 2005–2007 |
| 325i | E90 | N52B25 | 2005–2013 |
| 523i | E60 | N52B25 | 2005–2010 |
| X3 xDrive 25Si | E83 | N52B25 | 2006–2010 |
| Z4 2.5Si | E85 | N52B25 | 2006–2008 |
| Z4 23i | E89 | N52B25 | 2009–2011 |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.
Engine Parts Return Policy Warning
Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.
Installation & Maintenance Tips
- Compare the new gasket to the removed gasket before installation to confirm the bore diameter, coolant and oil passage positions, and layer count match.
- Ensure all mating surfaces are clean, flat, and free from old gasket material before assembly.
- Replace related seals and one-time-use head bolts or stretch bolts where applicable.
- Follow the correct tightening sequence and manufacturer workshop procedure during assembly.
- After installation, check carefully for leaks after the first heat cycle.
Common Questions
Does this cylinder head gasket fit my BMW 323i?
This part (61-35535-00) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Listed cross-references: 11 12 7 555 310, 11 12 7 555 755. Match at least one OEM reference to your original part before ordering.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
