Cylinder Head Stretch Bolt for Chevrolet Cruze F16D3 & Opel Astra - (Brand Options)
Vehicle Fitment & Part Details

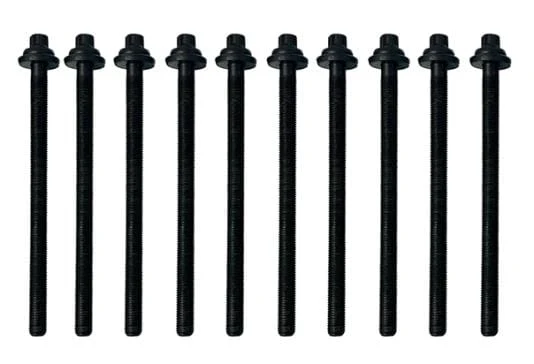

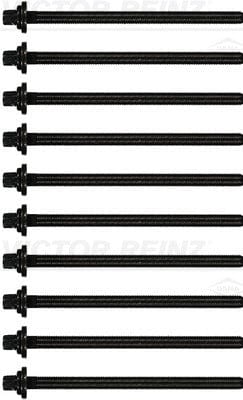

This cylinder head stretch bolt for Chevrolet Cruze 1.6 F16D3 uses OE reference 71739839 (10x) and has M10 x 1,25 mm thread. Supplied bolt specification includes male Torx head design and 148 mm length. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- HP2079 / 14-32103-01
- Component
- Cylinder Head Stretch Bolt
- OEM References
-
- Alfa Romeo: 71739839 (10x)
- Chevrolet: 90 412 701 (10x)
- Fiat: 71739839 (10x)
- Lancia: 71739839 (10x)
- Opel: 607 960 (10x)
- Opel: 90 412 701 (10x)
- Saab: 90 412 701 (10x)
- Primary Fitment
- Chevrolet Cruze 1.6 F16D3 (2009-2012)
- Specs
- M10; male Torx; 1,25 mm thread pitch; 148 mm length
Key Benefits
- Multiple Alfa Romeo, Chevrolet, Fiat, Lancia, Opel, and Saab reference numbers are listed for cross-checking before ordering.
- Supplied thread specification is M10 with 1,25 mm thread pitch.
- Head design is male Torx and supplied length is 148 mm.
OEM Reference Numbers
- Alfa Romeo: 71739839 (10x)
- Chevrolet: 90 412 701 (10x)
- Fiat: 71739839 (10x)
- Lancia: 71739839 (10x)
- Opel: 607 960 (10x)
- Opel: 90 412 701 (10x)
- Saab: 90 412 701 (10x)
Product Specifications
| Specification | Value |
|---|---|
| Thread Size | M10 |
| Bolt Head-/Nut Design | Male Torx |
| Thread Pitch [mm] | 1,25 mm |
| Length [mm] | 148 mm |
Vehicle Fitment
Includes 29 supplied applications.
View Full Vehicle Fitment (29 applications)
| Make | Model | Years | Engine |
|---|---|---|---|
| Chevrolet | Cruze 1.6 | 2009-2012 | F16D3 |
| Chevrolet | Cruze 1.6 | 2012-2013 | F16D4 |
| Chevrolet | Cruze 1.8 | 2009-2013 | F18D4 |
| Chevrolet | Optra 1.8 | 2003-2011 | T18SED |
| Chevrolet | Orlando 1.8 VVT | 2011- | F18D4 |
| Chevrolet | Sonic 1.6i Sedan | 2011- | F16D4 |
| Fiat | Stilo 1.6i Active | 2005-2007 | 192B3.000 |
| Opel | Astra 160I Euro | 1998-1999 | X16XEL |
| Opel | Astra 1.6 CS,CD | 1999-2004 | Z16XE |
| Opel | Astra 1.6 | 2004-2009 | Z16XEP |
| Opel | Astra 1.6 | 2010-2016 | A16XER |
| Opel | Astra 1.6T Sport | 2010-2016 | A16LET |
| Opel | Astra 1.8 CSE | 2002-2004 | X18XE1 |
| Opel | Astra 1.8 CSE,CDE | 1999-2004 | Z18XE1 |
| Opel | Astra 1.8 | 2004-2006 | Z18XE |
| Opel | Astra 1.8 | 2006-2009 | Z18XER |
| Opel | Corsa 1.4i Sedan | 2001-2009 | Z14XE |
| Opel | Corsa 1.6T OPC | 2008-2015 | Z16LER/B16 |
| Opel | Corsa 1.6T Sport | 2009-2015 | Z16LEL |
| Opel | Meriva 1.6i | 2003-2006 | Z16XE |
| Opel | Meriva 1.6i | 2006-2010 | Z16XEP |
| Opel | Meriva 1.8i | 2004-2010 | Z18XE |
| Opel | Tigra 1.8 | 2005-2009 | Z18XE |
| Opel | Zafira 1.8i | 2001-2006 | Z18XE |
| Opel | Zafira II 1.6i | 2006-2009 | Z16XE1 |
| Opel | Zafira II 1.8i | 2006-2009 | Z18XEP/XER |
| Opel | Combo 1.4 | 2006- | Z14XEP |
| Opel | Corsa 1.8i LDV [C] | 2005-2009 | C18SE |
| Opel | Astra 1.6 CS,CD | 1999-2004 | X16XEL |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.
Engine Parts Return Policy Warning
Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.
Installation & Maintenance Tips
- Compare the new bolts to the removed bolts before installation to confirm the thread size, length, and head design match.
- Clean bolt holes and mating surfaces before assembly and ensure threads are free from debris or old sealant where applicable.
- Replace the complete bolt set where the workshop procedure requires one-time-use stretch bolts.
- Follow the vehicle manufacturer’s workshop procedure, tightening sequence, and torque specifications during installation.
- After assembly, recheck for correct seating and complete the remaining engine reassembly steps according to the workshop procedure.
Common Questions
Does this Cylinder Head Stretch Bolt fit my Chevrolet Cruze?
This part (HP2079 /14-32103-01 ) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Listed cross-references: 71739839 (10x), 90 412 701 (10x), 607 960 (10x). Match at least one OEM reference to your original part before ordering.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
