Dual-Mass Flywheel Ford Focus/Tourneo/Transit Connect 1.6 TDCi - Mazda/Volvo 1.6D - 6366 000 055

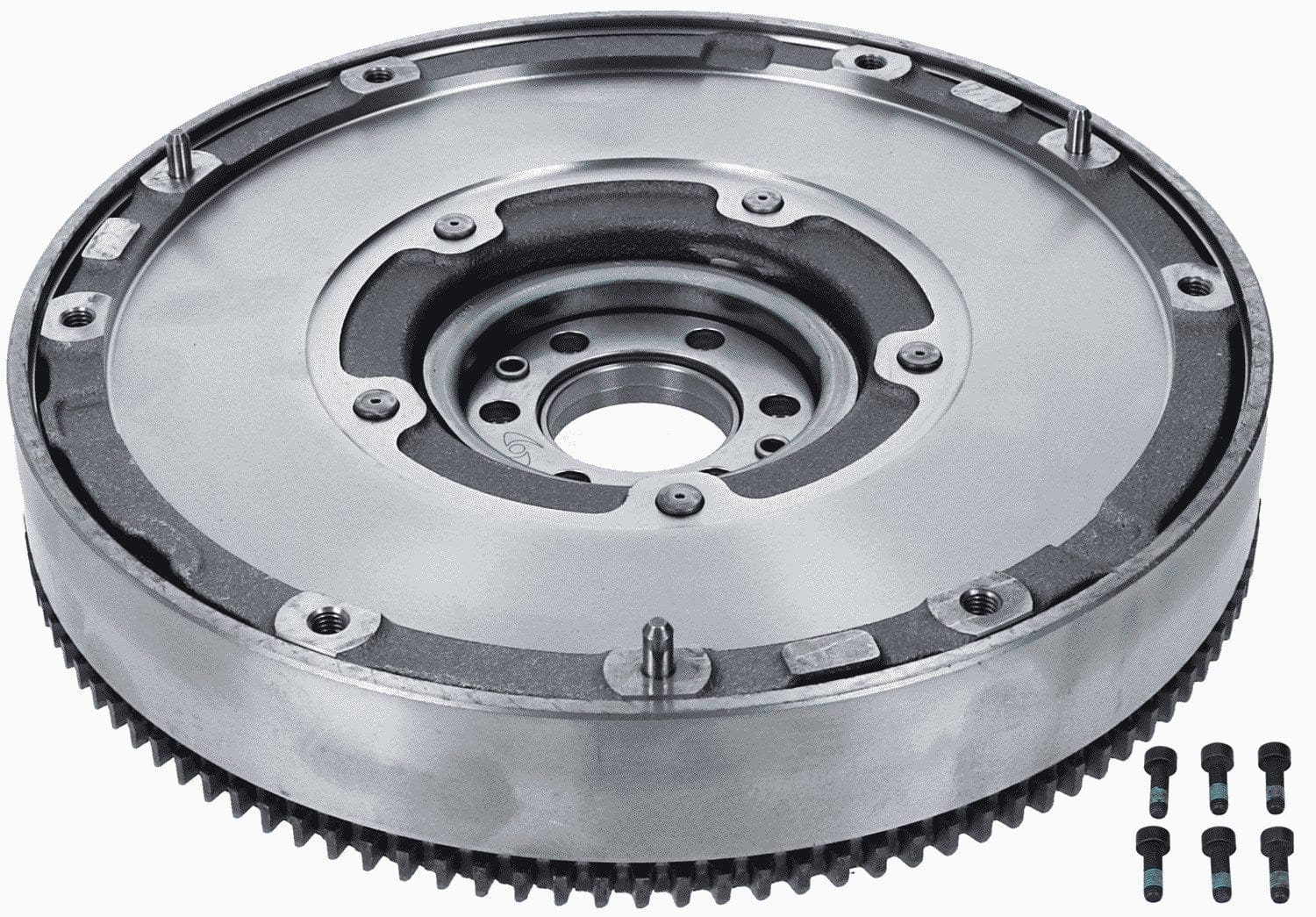

Dual-Mass Flywheel 240mm (With Flywheel Screws) - Ford / Mazda / Volvo 1.6 Diesel - 6366 000 055

SKU 6366 000 055 is a dual-mass flywheel (DMF) with flywheel screws for selected Ford, Mazda, and Volvo 1.6 diesel applications. The DMF helps reduce drivetrain vibration and improves smoothness during take-off and gear changes on compatible 6-speed manual vehicles.

Vehicle Compatibility

• Ford Focus III 1.6 TDCi - Engine: T1DA / T1DB - 2011-
• Ford Focus III (10-20) 1.6 TDCi - Engine: T3DA / T3DB - 07/2010-12/2017
• Ford Focus III (10-20) 1.6 TDCi - Engine: T1DA / T1DB - 07/2010-12/2017
• Ford Focus III (10-20) 1.6 TDCi ECOnetic - Engine: NGDA / NGDB - 05/2012-07/2015
• Ford Focus III Saloon (10-20) 1.6 TDCi - Engine: T3DA / T3DB - 07/2010-02/2020
• Ford Focus III Saloon (10-20) 1.6 TDCi - Engine: T1DA / T1DB - 07/2010-02/2020
• Ford Focus III Saloon (10-20) 1.6 TDCi - Engine: NGDA / NGDB - 05/2012-07/2015
• Ford Focus III Turnier (10-20) 1.6 TDCi - Engine: T3DA / T3DB - 07/2010-02/2020
• Ford Focus III Turnier (10-20) 1.6 TDCi - Engine: T1DA / T1DB - 07/2010-02/2020
• Ford Focus III Turnier (10-20) 1.6 TDCi ECOnetic - Engine: NGDA / NGDB - 05/2012-07/2015
• Ford Focus III Hatchback Van (11-20) 1.6 TDCi - Engine: T3DA / T3DB - 01/2011-12/2017
• Ford Tourneo Connect / Grand Tourneo Connect (V408 MPV) 1.6 TDCi - Engine: T1GA - 09/2013-
• Ford Tourneo Connect 1.6 TDCi - Engine: T1GA - 2015-
• Ford Transit Connect (V408 Box Body/MPV) 1.6 TDCi - Engine: T1GA - 02/2013-
• Ford Transit Connect MPV (13-) 1.6 TDCi - Engine: T1GA - 02/2013-
• Ford Transit Connect 1.6 TDCi - Engine: T1GA - 2015-
• Mazda 3 (BL) 1.6 MZR CD (BL14) - Engine: Y650 / Y655 - 09/2010-05/2013
• Mazda 3 (BL) 1.6 MZ-CD (BL14) - Engine: Y642 - 12/2008-05/2013
• Mazda 3 Saloon (BL) 1.6 MZR CD (BL14) - Engine: Y650 / Y655 - 09/2010-05/2013
• Mazda 3 Saloon (BL) 1.6 MZR CD (BL12) - Engine: Y642 - 12/2008-05/2013
• Mazda 5 (CW) 1.6 CD - Engine: Y650 / Y655 / Y6Y1 - 07/2010-
• Volvo C30 (533) D2 1.6 Diesel - Engine: D 4162 T - 10/2010-12/2012
• Volvo S40 II (544) D2 1.6 Diesel - Engine: D 4162 T - 10/2010-12/2012
• Volvo V40 Hatchback (525) D2 1.6 Diesel - Engine: D 4162 T - 03/2012-12/2016
• Volvo V40 Hatchback Van (525) 1.6 D2 / DRIVe - Engine: D 4162 T - 09/2013-12/2015
• Volvo V40 Cross Country (526) D2 1.6 Diesel - Engine: D 4162 T - 10/2012-12/2016
• Volvo V40 Cross Country (526) 1.6 D2 / DRIVe - Engine: D 4162 T - 09/2013-12/2015
• Volvo V50 (545) D2 1.6 Diesel - Engine: D 4162 T - 01/2010-12/2012
• Volvo V40 II 1.6 D2 - Engine: D4162T - 2012-
• Volvo C30 1.6 D2 - Engine: D4162T - 2011-2013
• Volvo S40 II 1.6 D2 - Engine: D4162T - 2010-2012

Specifications

• Model: Dual-mass flywheel
• Outer Diameter: 240 mm
• Transmission Type: 6-Speed Manual Transmission
• Engine Codes: T1GA; 16DSOX
• Supplementary Info: With flywheel screws

Reference Numbers (OEM & Cross-Reference)

• FORD: 1692745; AV61 6477 CE; 2522128; 1716877; AV61 6477 CF; AV61 6477 CC; 1727630; RMAV61 6477 CE; AV61 6477 CD; 2028456
• MAZDA: Y650 16 610B
• SACHS: 06 6366 000 032; 06 6366 000 055
• Schaeffler LuK: 415 0537 11; 415 0619 10
• VALEO: 836187; 836222
• VOLVO: 32339365; 31259733; 31325438

Fitment note: Dual-mass flywheels must match the exact engine and transmission setup. Confirm by VIN and engine code before ordering.
