Rear Main Crankshaft Seal Alfa 4C 1.8 Tbi Opel Astra H 1.9 Diesel - (Choose Option)

Rear Main Crankshaft Seal Alfa 4C 1.8 Tbi Opel Astra H 1.9 Diesel - (Choose Option)

Rear Main Crankshaft Seal for Alfa 4C 1.8 Tbi 960 A1.000 - 81-90027-00 / MR99191

This rear main crankshaft seal, also referred to as a rear main seal, is listed for the vehicle applications below. FPM (fluoride rubber) seal with integrated housing, 93 mm inner diameter, 139,7 mm outer diameter 1, 172 mm outer diameter 2, 12 mm thickness, 840S LD design, and left-hand twist. Confirm compatibility by matching OEM reference numbers, engine details, and model year. VIN check is recommended where variants exist.

Key Details

SKU
81-90027-00 / MR99191
Component
Rear Main Crankshaft Seal
OEM References
  • 60811518 (Alfa Romeo)
  • 60814374 (Alfa Romeo / Fiat)
  • 71 718 365 (Alfa Romeo)
  • 68366078AA (Dodge)
  • 46435513 (Fiat)
  • 55268285 (Fiat)
  • 60654310 (Fiat)
  • 60655830 (Fiat)
  • 71713041 (Fiat)
  • 71718365 (Fiat)
  • 7750404 (Fiat)
  • 68319796AA (Jeep)
  • 614965 (Opel)
  • 93178503 (Opel / Saab)
  • 11341-79J50 (Suzuki)
Primary Fitment
Alfa 4C 1.8 Tbi 960 A1.000 (2013-0000)
Specs
Outer Diameter 1: 139,7 mm; Outer Diameter 2: 172 mm; Inner Diameter: 93 mm; Thickness: 12 mm; Material: FPM (fluoride rubber); Radial Shaft Seal Design: 840S LD; Swirl Type: Left-hand Twist; Housing Type: Integrated housing

Key Benefits

  • OEM reference numbers listed for cross-checking before ordering
  • Integrated housing as supplied
  • FPM (fluoride rubber) material as supplied
  • 840S LD radial shaft seal design with left-hand twist

OEM Reference Numbers

  • Alfa Romeo: 60811518, 60814374, 71 718 365
  • Dodge: 68366078AA
  • Fiat: 46435513, 55268285, 60654310, 60655830, 60814374, 71713041, 71718365, 7750404
  • Jeep: 68319796AA
  • Opel: 614965, 93178503
  • Saab: 93178503
  • Suzuki: 11341-79J50

Product Specifications

Specification Value
Outer Diameter 1 [mm] 139,7 mm
Outer Diameter 2 [mm] 172 mm
Inner Diameter [mm] 93 mm
Thickness [mm] 12 mm
Material FPM (fluoride rubber)
Radial Shaft Seal Design 840S LD
Swirl Type Left-hand Twist
Housing Type Integrated housing

Vehicle Fitment

  • Alfa Romeo – 4C 1.8 Tbi 960 A1.000 2013-0000
  • Alfa Romeo – 145 2.0 QUADRIFOGL AR67.204 1996-2001
  • Alfa Romeo – 146 2.0 TI AR67.204 1996-1999
  • Alfa Romeo – 147 1.9 JTD M-JET 937A5.000 2005-2010
  • Alfa Romeo – 147 2.0i TWIN SPAR AR32.310 2001-2010
  • Alfa Romeo – 155 2.0 TWIN SPARK AR67.204 1996-1998
  • Alfa Romeo – 156 2.0 TWIN SPARK AR32.301 1997-2002
  • Alfa Romeo – 159 1.8 TBI 939 B1.000 2009-2011
  • Alfa Romeo – 159 2.4 JTDM 939A3.000 2007-2010
  • Alfa Romeo – GIULIETTA 1.8 TBi 940A1.000 2011-0000
  • Alfa Romeo – GTV & SPIDER 2.0 AR32310 1996-2005
  • Cadillac – BLS 1.9 TDi Z19DTH 2007-2009
  • Fiat – 500L 1.6D M-JET 199B5.000 2013-0000
  • Fiat – BRAVO 1.9 M-JET 937A5.000 2007-2010
  • Fiat – GRANDE PUNTO 1.9 J 939A1.000 2006-2008
  • Fiat – PUNTO 1.8 HGT 183A /188A 2004-2007
  • Fiat – STILO 1.9 JTD 192A1.000 2003-2006
  • Fiat – STILO 2.4 192A2.000 2004-2006
  • Fiat – DOBLO 1.6D M-JET 198A3.000 2013-0000
  • Fiat – DOBLO 1.9D P/VAN 223A.6000 2003-2006
  • Opel – ASTRA GTC 1.9 CDTi Z19DTJ 2006-2009
  • Opel – ZAFIRA II 1.9 CDTi Z19DTH 2006-2009

Fitment Notes

  • Always match by OEM reference number(s) and vehicle details before ordering.
  • Confirm exact fitment using your VIN, engine code, or chassis number if multiple variants exist.
  • Trust signal: OEM references and fitment details are provided to support accurate cross-checking.
  • South Africa nationwide delivery available - contact us for fitment assistance.

Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.

🚫 Engine Parts Return Policy Warning

Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.

Common Questions

Does this Rear Main Crankshaft Seal fit my Alfa 4C?
This part (81-90027-00 / MR99191) is listed for the fitments shown on this page. Confirm by matching OEM reference numbers and verifying VIN/engine/chassis where variants exist.

What OEM part numbers does this replace?
Cross-references include 60811518, 60814374, 71 718 365, 68366078AA, 46435513, 55268285, 60654310, 60655830, 71713041, 71718365, 7750404, 68319796AA, 614965, 93178503, and 11341-79J50. Match at least one OEM reference to your original part before ordering.

How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare to the fitment section above. If unsure, request fitment assistance before ordering.



Select Brand Option
From $44.38
Rear Main Crankshaft Seal Alfa 4C 1.8 Tbi Opel Astra H 1.9 Diesel - (Choose Option)—
$44.38

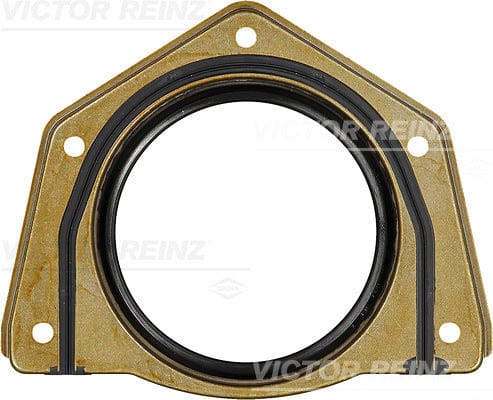

Product image 1
Product image 2

Description

Rear Main Crankshaft Seal for Alfa 4C 1.8 Tbi 960 A1.000 - 81-90027-00 / MR99191

This rear main crankshaft seal, also referred to as a rear main seal, is listed for the vehicle applications below. FPM (fluoride rubber) seal with integrated housing, 93 mm inner diameter, 139,7 mm outer diameter 1, 172 mm outer diameter 2, 12 mm thickness, 840S LD design, and left-hand twist. Confirm compatibility by matching OEM reference numbers, engine details, and model year. VIN check is recommended where variants exist.

Key Details

SKU
81-90027-00 / MR99191
Component
Rear Main Crankshaft Seal
OEM References
  • 60811518 (Alfa Romeo)
  • 60814374 (Alfa Romeo / Fiat)
  • 71 718 365 (Alfa Romeo)
  • 68366078AA (Dodge)
  • 46435513 (Fiat)
  • 55268285 (Fiat)
  • 60654310 (Fiat)
  • 60655830 (Fiat)
  • 71713041 (Fiat)
  • 71718365 (Fiat)
  • 7750404 (Fiat)
  • 68319796AA (Jeep)
  • 614965 (Opel)
  • 93178503 (Opel / Saab)
  • 11341-79J50 (Suzuki)
Primary Fitment
Alfa 4C 1.8 Tbi 960 A1.000 (2013-0000)
Specs
Outer Diameter 1: 139,7 mm; Outer Diameter 2: 172 mm; Inner Diameter: 93 mm; Thickness: 12 mm; Material: FPM (fluoride rubber); Radial Shaft Seal Design: 840S LD; Swirl Type: Left-hand Twist; Housing Type: Integrated housing

Key Benefits

  • OEM reference numbers listed for cross-checking before ordering
  • Integrated housing as supplied
  • FPM (fluoride rubber) material as supplied
  • 840S LD radial shaft seal design with left-hand twist

OEM Reference Numbers

  • Alfa Romeo: 60811518, 60814374, 71 718 365
  • Dodge: 68366078AA
  • Fiat: 46435513, 55268285, 60654310, 60655830, 60814374, 71713041, 71718365, 7750404
  • Jeep: 68319796AA
  • Opel: 614965, 93178503
  • Saab: 93178503
  • Suzuki: 11341-79J50

Product Specifications

Specification Value
Outer Diameter 1 [mm] 139,7 mm
Outer Diameter 2 [mm] 172 mm
Inner Diameter [mm] 93 mm
Thickness [mm] 12 mm
Material FPM (fluoride rubber)
Radial Shaft Seal Design 840S LD
Swirl Type Left-hand Twist
Housing Type Integrated housing

Vehicle Fitment

  • Alfa Romeo – 4C 1.8 Tbi 960 A1.000 2013-0000
  • Alfa Romeo – 145 2.0 QUADRIFOGL AR67.204 1996-2001
  • Alfa Romeo – 146 2.0 TI AR67.204 1996-1999
  • Alfa Romeo – 147 1.9 JTD M-JET 937A5.000 2005-2010
  • Alfa Romeo – 147 2.0i TWIN SPAR AR32.310 2001-2010
  • Alfa Romeo – 155 2.0 TWIN SPARK AR67.204 1996-1998
  • Alfa Romeo – 156 2.0 TWIN SPARK AR32.301 1997-2002
  • Alfa Romeo – 159 1.8 TBI 939 B1.000 2009-2011
  • Alfa Romeo – 159 2.4 JTDM 939A3.000 2007-2010
  • Alfa Romeo – GIULIETTA 1.8 TBi 940A1.000 2011-0000
  • Alfa Romeo – GTV & SPIDER 2.0 AR32310 1996-2005
  • Cadillac – BLS 1.9 TDi Z19DTH 2007-2009
  • Fiat – 500L 1.6D M-JET 199B5.000 2013-0000
  • Fiat – BRAVO 1.9 M-JET 937A5.000 2007-2010
  • Fiat – GRANDE PUNTO 1.9 J 939A1.000 2006-2008
  • Fiat – PUNTO 1.8 HGT 183A /188A 2004-2007
  • Fiat – STILO 1.9 JTD 192A1.000 2003-2006
  • Fiat – STILO 2.4 192A2.000 2004-2006
  • Fiat – DOBLO 1.6D M-JET 198A3.000 2013-0000
  • Fiat – DOBLO 1.9D P/VAN 223A.6000 2003-2006
  • Opel – ASTRA GTC 1.9 CDTi Z19DTJ 2006-2009
  • Opel – ZAFIRA II 1.9 CDTi Z19DTH 2006-2009

Fitment Notes

  • Always match by OEM reference number(s) and vehicle details before ordering.
  • Confirm exact fitment using your VIN, engine code, or chassis number if multiple variants exist.
  • Trust signal: OEM references and fitment details are provided to support accurate cross-checking.
  • South Africa nationwide delivery available - contact us for fitment assistance.

Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.

🚫 Engine Parts Return Policy Warning

Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.

Common Questions

Does this Rear Main Crankshaft Seal fit my Alfa 4C?
This part (81-90027-00 / MR99191) is listed for the fitments shown on this page. Confirm by matching OEM reference numbers and verifying VIN/engine/chassis where variants exist.

What OEM part numbers does this replace?
Cross-references include 60811518, 60814374, 71 718 365, 68366078AA, 46435513, 55268285, 60654310, 60655830, 71713041, 71718365, 7750404, 68319796AA, 614965, 93178503, and 11341-79J50. Match at least one OEM reference to your original part before ordering.

How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare to the fitment section above. If unsure, request fitment assistance before ordering.
