Alternator Voltage Regulator Fiat Palio 1.6 Multipla Fiat VW 12V 1 Post D+ 14.5V REG1101
Vehicle Compatibility
Alternator voltage regulator for select Fiat applications where the original regulator matches a 1 post D+ connection and the same charging characteristics. Listed for Fiat Palio 1.6 and Fiat Multipla, and referenced for matching Fiat and VW alternator applications where the same 1 post D+ regulator is fitted. Confirm by regulator layout and terminal style before ordering.
- Fiat: Palio 1.6; Multipla
- Fiat / VW: Applications using a matching 12V 1 post D+ regulator
Specifications
- Reference: REG1101
- Part Type: Alternator Voltage Regulator
- System Voltage: 12V
- Charging Voltage: 14.5V
- Operating Voltage: 14V

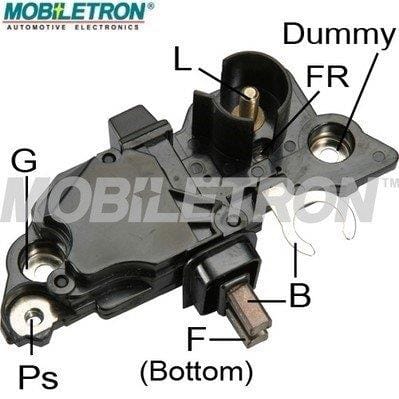

- Connection Style: 1 Post (D+)
- Specification: 2.5 Sec. LRC
- Active Lamp: Yes
- Short Circuit Protection: Yes
Features
- Regulates alternator field current to maintain stable charging output on compatible 12V systems
- 1 post D+ connection format to match the specified alternator regulator terminal layout
- 14.5V charging specification with 2.5 sec LRC characteristic for matching regulator behaviour
- Active lamp function with short circuit protection for supported charging circuits
- Suitable for alternator overhaul work where the original regulator matches the same 1 post D+ layout
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing regulator layout
- Trusted by workshops and DIY customers for reliable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or regulator replacement
- Confirm the regulator terminal style is 1 post D+ and matches the original regulator layout before fitting
- Inspect brushes and slip rings while the alternator is open and replace worn components where required
- Ensure battery terminals and earth connections are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm warning lamp behaviour
- If you are unsure about alternator repairs, have the regulator fitted and tested by a qualified auto electrician
