Thermostat Isuzu D-Max / MU-X 1.9 / 2.5 / 3.0 Diesel TH1188

Thermostat for Isuzu D-Max and MU-X Diesel Applications

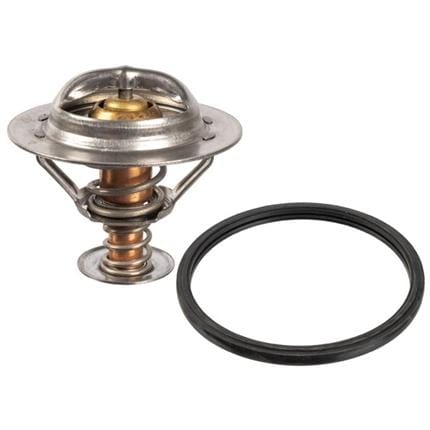

TH1188 is a thermostat for selected Isuzu D-Max and MU-X diesel applications. It opens at 85°C and is supplied with gaskets and a seal ring. This version is supplied without housing and without sensor.

Key Details

Component Type

Thermostat

Opening Temperature

85°C

Diameter 1

64 mm

Diameter 2

28 mm

Height 1

40 mm

Height

60 mm

Housing Type

Without housing

Supplementary Info

With gaskets / seals, with gasket / seal

Supplementary Info 2

With seal ring, without sensor

Weight

89,2 g

Key Benefits

• 85°C opening temperature
• Supplied with gaskets / seals
• Includes seal ring
• Without housing
• Without sensor

OEM Reference Numbers

• General Motors: 98017027
• Isuzu: 8980170271
• Isuzu: 8980170272
• Isuzu: 98017027
• Isuzu: 8980170270

Product Specifications

Opening Temperature	85°C
Diameter 1	64 mm
Diameter 2	28 mm
Height 1	40 mm
Height	60 mm
Housing Type	Without housing
Sensor	Without sensor
Seal / Gasket Info	With gaskets / seals and seal ring
Weight	89,2 g

Vehicle Fitment

• Isuzu D-Max I (TFR, TFS) 2.5 DiTD 4x4 (TFS86_) 4JK1-TC, Diesel 2.5, 100kW / 136PS, 2499ccm (01/2007-06/2012)
• Isuzu D-Max I (TFR, TFS) 2.5 DiTD (TFR86_) 4JK1-TC, Diesel 2.5, 100kW / 136PS, 2499ccm (10/2006-06/2012)
• Isuzu D-Max I (TFR, TFS) 3.0 DiTD 4x4 (TFS85_) 4JJ1-TC; 4JJ1E4C-L, Diesel 3.0, 120kW / 163PS, 2999ccm (01/2007-06/2012)
• Isuzu D-Max I (TFR, TFS) 3.0 DiTD (TFR85_) 4JJ1-TC; 4JJ1E4C-L, Diesel 3.0, 120kW / 163PS, 2999ccm (01/2007-06/2012)
• Isuzu D-Max I (TFR, TFS) 2.5 DiTD (TFR86_) 4JK1-TC, Diesel 2.5, 85kW / 116PS, 2499ccm (10/2006-06/2012)
• Isuzu D-Max I (TFR, TFS) 2.5 DiTD 4x4 (TFS86H) 4JK1-TC, Diesel 2.5, 85kW / 116PS, 2499ccm (10/2006-06/2012)
• Isuzu D-Max I (TFR, TFS) 2.5 4JK1-TCX, Diesel 2.5, 56kW / 76PS, 2499ccm (10/2006-10/2012)
• Isuzu D-Max I Platform / Chassis (TFR, TFS) 3.0 D 4x4 4JJ1-TC, Diesel 3.0, 120kW / 163PS, 2999ccm (01/2007-06/2012)
• Isuzu D-Max I Platform / Chassis (TFR, TFS) 2.5 DiTD 4JK1-TC, Diesel 2.5, 100kW / 136PS, 2499ccm (10/2006-06/2012)
• Isuzu D-Max I Platform / Chassis (TFR, TFS) 2.5 DiTD 4x4 4JK1-TC, Diesel 2.5, 100kW / 136PS, 2499ccm (10/2006-10/2012)
• Isuzu D-Max II (TFR, TFS) 2.5 CRDi 4x4 (TFS86J) 4JK-1E5-TC; 4JK1-E5S-L, Diesel 2.5, 120kW / 163PS, 2499ccm (06/2012-12/2018)
• Isuzu D-Max II (TFR, TFS) 2.5 CRDi (TFR86J) 4JK-1E5-TC; 4JK1-E5S-L, Diesel 2.5, 120kW / 163PS, 2499ccm (06/2012-12/2018)
• Isuzu D-Max II Platform / Chassis (TFR, TFS) 2.5 CRDi 4JK1-TCY, Diesel 2.5, 120kW / 163PS, 2499ccm (06/2012-0/0)
• Isuzu D-Max II Platform / Chassis (TFR, TFS) 2.5 CRDi 4WD 4JK1-TCY, Diesel 2.5, 120kW / 163PS, 2499ccm (06/2012-0/0)
• Isuzu D-Max DDi RG01 1898 RZ4E-TC 4 D 16 1 80 (2022-)
• Isuzu MU-X TFS/TFR 1898 RZ4E-TC 4 D 16 1 80 (2022-)

Fitment Notes

• Fits selected Isuzu D-Max I, D-Max II, D-Max Platform / Chassis, D-Max DDi and MU-X applications listed above.
• Please match by OEM reference, thermostat dimensions, opening temperature, and engine code before ordering.
• This thermostat is supplied without housing and without sensor.

Common Questions

Does this thermostat include a housing?
No. TH1188 is listed as without housing.

Does this thermostat include a sensor?
No. TH1188 is listed as without sensor.

Are seals included?
Yes. It is supplied with gaskets / seals and with a seal ring.
